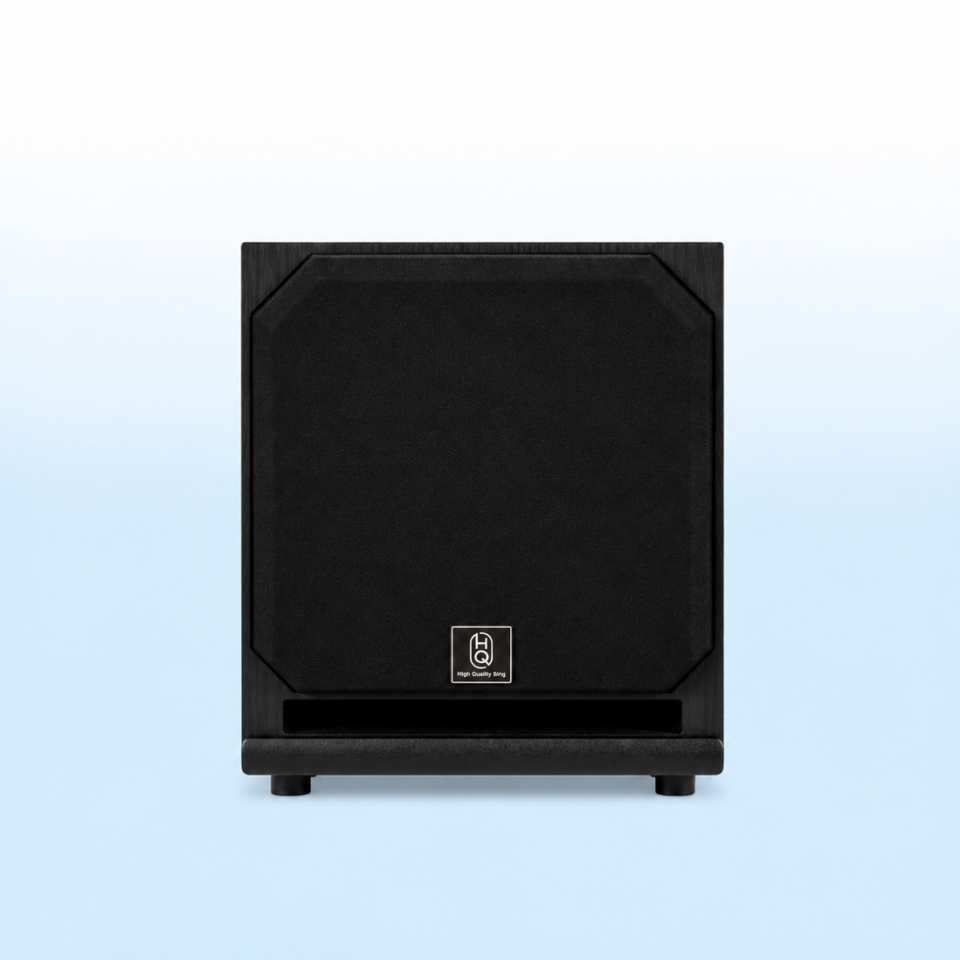

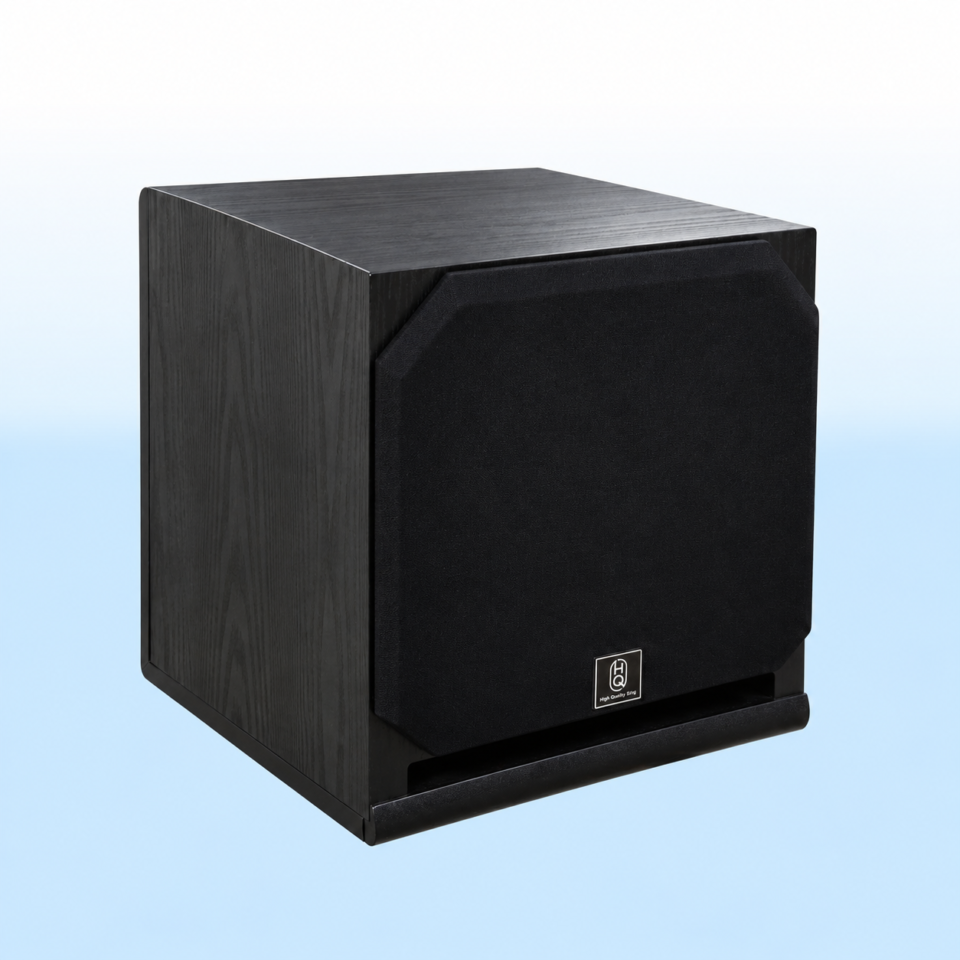

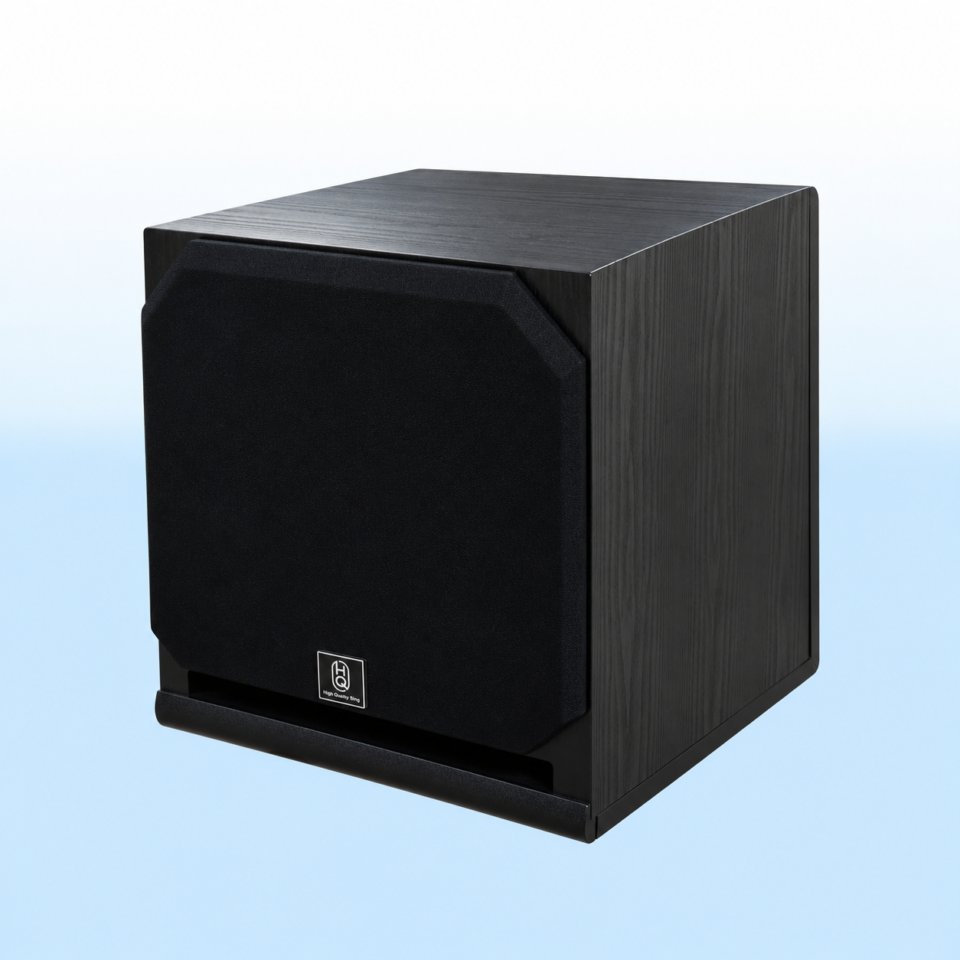

Subwoofer HQsing SW12

The HQsing SW12 is a powerful 12-inch active subwoofer designed to deliver strong, full-bodied bass for karaoke, music, and home entertainment. Its full-black cabinet gives the SW12 a clean, bold, and professional appearance that pairs easily with a wide range of speaker systems.

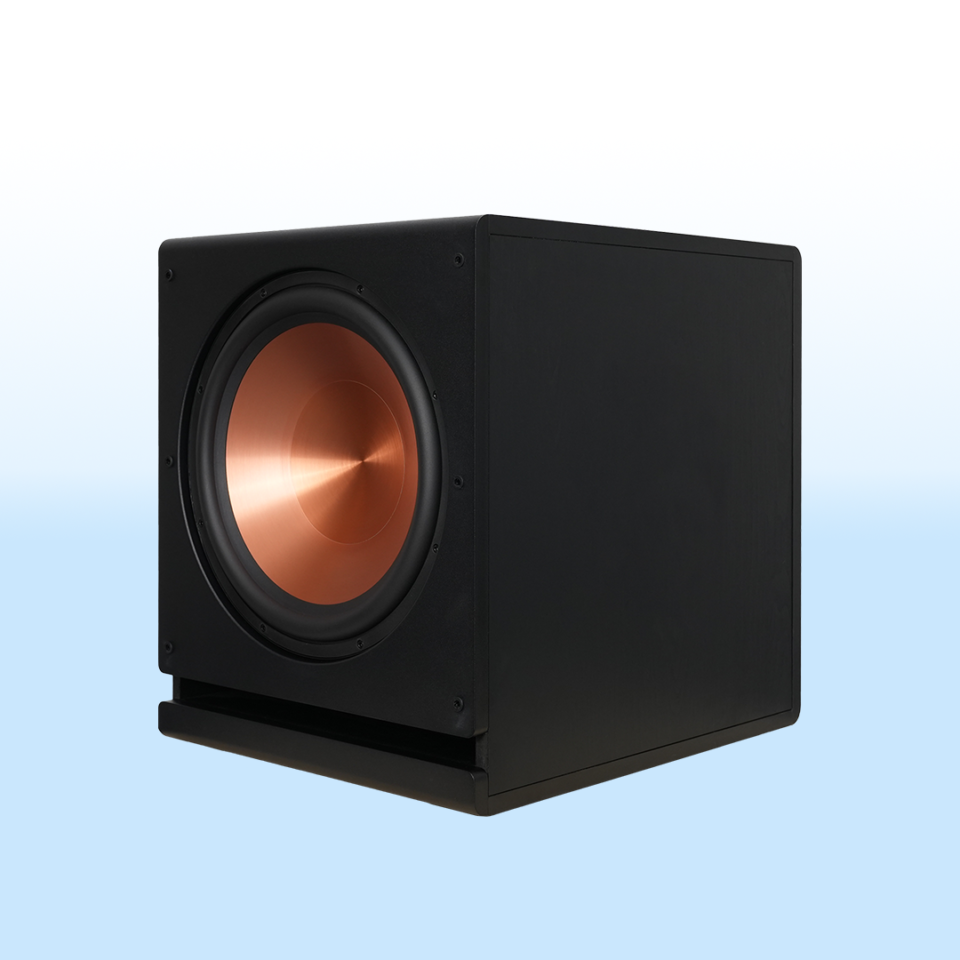

Equipped with a 12-inch paper-cone woofer featuring a double magnet and steel basket, the SW12 delivers 450W RMS and up to 1000W peak power. Combined with a built-in Class D amplifier, it provides powerful and controlled low-frequency performance from 35Hz–120Hz.

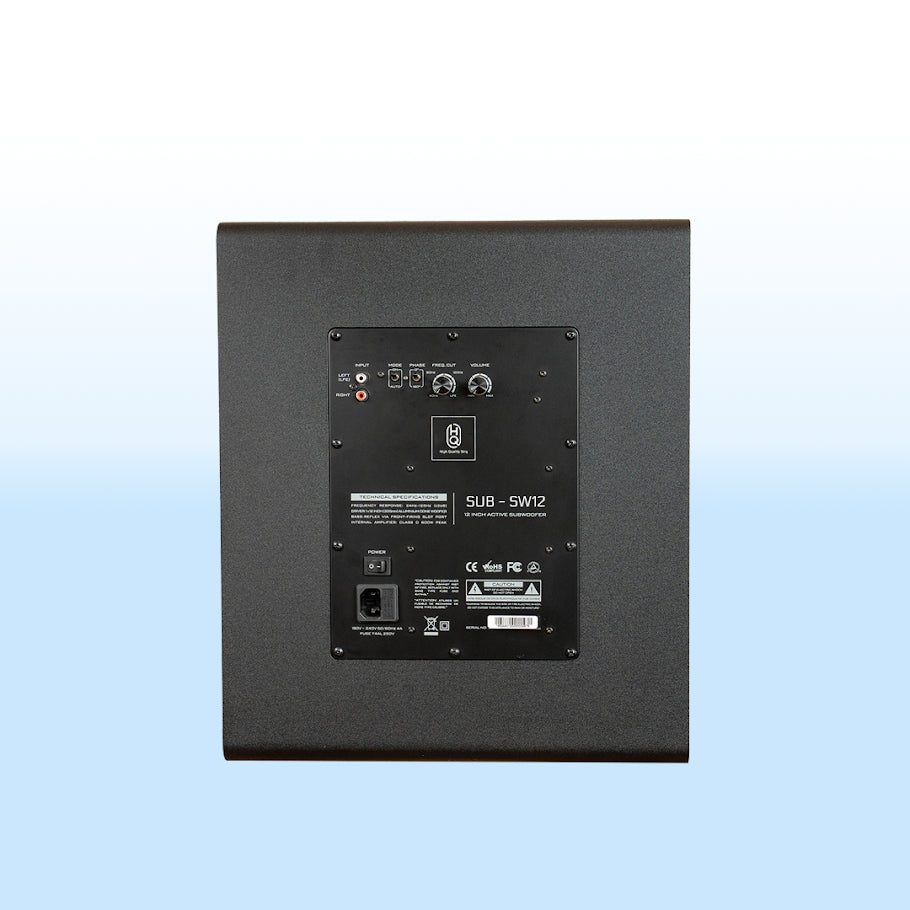

With adjustable 0°–180° phase control, Line In / LFE RCA connectivity, and a wide 115V–230V power supply, the SW12 offers flexible integration into different home audio and karaoke setups.

CONTACT US, WE OFFER 24/7 CUSTOMER SERVICE!!!

Setup

1. Place the SW12 on the floor near your main speakers, with nothing blocking the speaker face.
2. Power off all equipment and use an RCA cable to connect the sub output of your digital processor or amplifier, or the LFE output of your decoder, to the SW12's Line In / LFE input.
3. Plug in the SW12, turn on the source and amplifier first, then turn on the subwoofer.

Tuning

1. Start with the SW12 volume low and raise it gradually until the bass blends with the main speakers.
2. Adjust the phase within 0°–180° and choose the setting that gives the tightest, clearest bass at your seat.
3. When singing karaoke, keep the bass at a moderate level so it doesn't overpower the vocals.

Care

• Wipe the cabinet with a soft, dry cloth; don't use harsh cleaning chemicals.
• Place the speaker in a dry spot away from direct sunlight and heat sources.
• Turn off and unplug when not in use for long periods.
