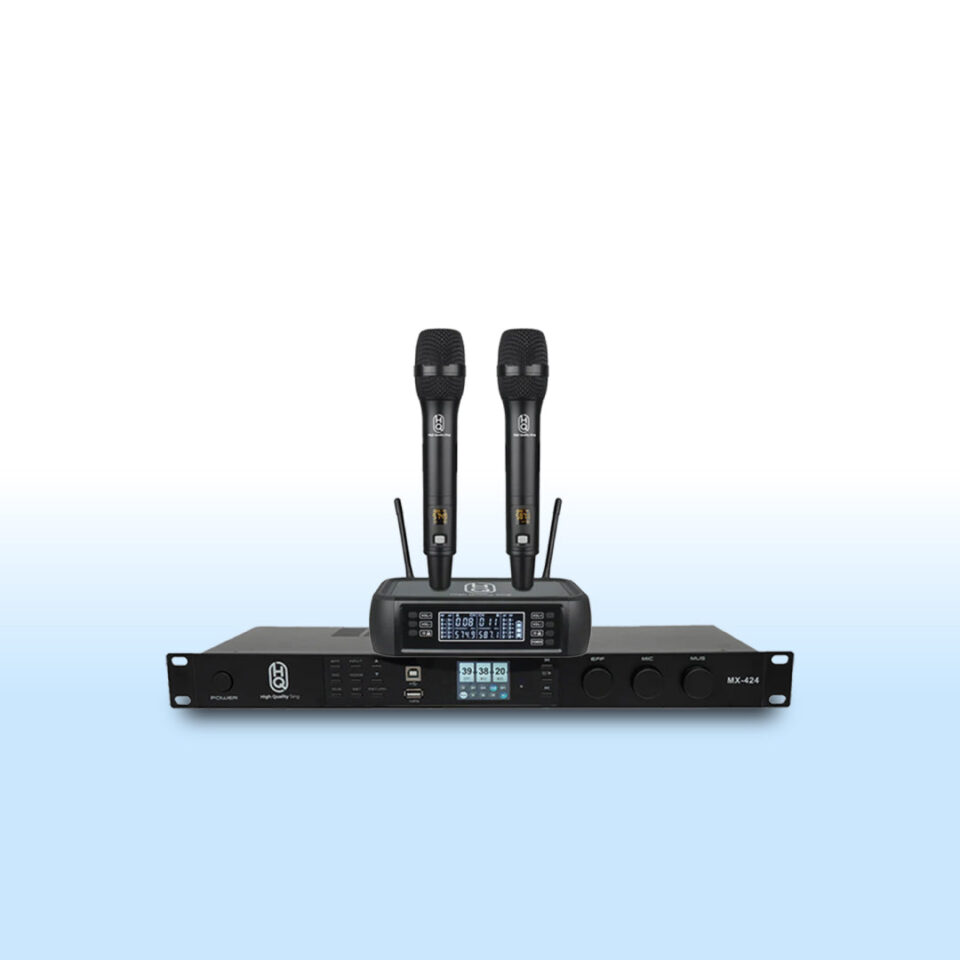

Processor HQsing MX424 & Microphones HQsing MEP124

Processor HQsing MX424 is produced for home or business karaoke systems for multi-purpose halls, conferences, and large stages with good sound performance, easy installation, adjustment and savings cost of electricity. It has the ability to adjust the components independently, for realistic and detailed sound.

The HQsing MEP124 integrates a built-in Digital circuit, allowing you to adjust professional sound effects.
The HQsing MEP124 microphone pairs perfectly with American portable speakers such as BOSE S1 PRO, BOSE S1 PRO PLUS, JBL EON One MKII, MACKIE Thump Go8, delivering detailed and vibrant sound.
Not only does this intelligent microphone effectively suppress feedback, but it also uses a rechargeable Lithium-ion battery with a runtime of up to 12 hours, allowing you to comfortably sing all day.

WHY BUYING FROM HQsing:

• 30-day Risk Free Trial (Đổi trả miễn phí trong 30 ngày)
• 18 Month Product Warranty (bảo hành 1 đổi 1 trong 18 tháng)
• FREE 24/7 Lifetime customer service as long as item still working (Hỗ trợ kỹ thuật 24/7 trọn đời sản phẩm).
• Free shipping USA & Vietnam

PARAMETER

Frequency respond（-1dB）：（MUSIC、MIC）20Hz～20KHz

Input sensitivity ：（MIC）11mV （MUSIC）210mV

Music tone：（±10dB）7 segment PEQ .

Microphone tone ：（±10dB）7 segment PEQ

Subwoofer ：（±10dB）3 segment PEQ

Centre-channel ：（±10dB）3 segment PEQ

Microphone low cut： 0Hz-200Hz

S/N(A weighted) :≥95dB

Free Gift

Optical Audio Cable HQsing OC24 x 1pc

Setup

1. Power off all equipment before wiring.
2. Connect your music source (TV, karaoke player) to the MX424's MUSIC input, then connect the MX424's outputs to your amplifier or speakers.
3. If your system has a subwoofer or center speaker, connect them to the corresponding outputs.
4. Fully charge the MEP124 mics before first use.

Tuning

1. Turn on the MX424 first, then the amplifier or speakers; start with the volume low and raise it gradually.
2. Adjust the 7-band music EQ for balanced music, then the 7-band mic EQ so vocals are clear, not harsh.
3. Use the mic low-cut filter to reduce hum and plosives when singing close to the mic.
4. Adjust the 3-band EQ of the Sub and Center channels so the bass and midrange blend with the main speakers.

Care

• Keep the digital processor in a dry, well-ventilated place away from dust and heat sources.
• Charge the mics when the battery is low, and don't leave the battery drained for long.
• Turn off and unplug when not in use for long periods.
